Located in Mumbai, PTFE Lined Pipe is a reliable Indian manufacturer and supplier of PTFE, FEP and PFA lined tees. From our Mumbai location we supply high-quality lined tees that are capable of performing well in corrosive and high-temperature conditions. The fittings have good chemical resistance, good mechanical properties and long-lasting performance which makes them suitable for tough industrial applications.

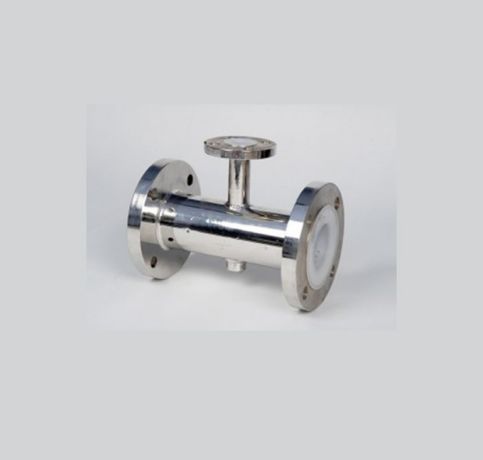

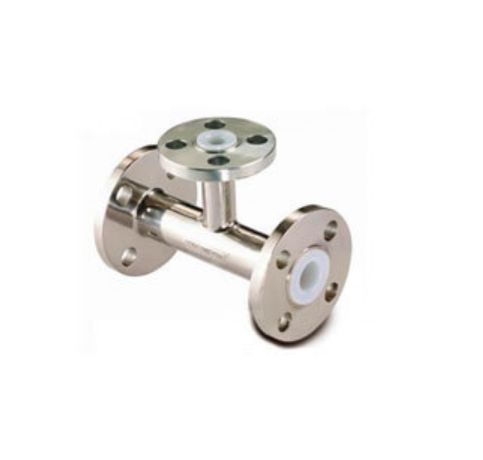

PTFE Lined Tees are utilized in piping systems to join or divide flow, particularly where high-purity media or aggressive chemicals are present. These tees are lined with FEP, PFA or PTFE and are heat resistant, corrosion resistant and resistant to contamination. They are applied in chemical processing, food production and pharmaceutical industries. PTFE Lined Tees come in two general categories: Equal Tees, in which all three outlets are the same size, and Reducing Tees, in which the branch outlet is smaller for easy transition in size.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
PTFE Lined Pipe is a leading supplier of PTFE Lined Tee in Mumbai, India, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
NB – 1 | NB – 2 | C – 1 |
15 | 15 | 65 |
20 | 20 | 75 |
25 | 25 | 89 |
40 | 40 | 102 |
50 | 50 | 114 |
50 | 25 | 114 |
50 | 40 | 114 |
80 | 25 | 140 |
80 | 40 | 140 |
80 | 50 | 140 |
80 | 80 | 140 |
Handles aggressive and corrosive media safely.
Ensures secure flow without any leakage.
Evenly splits or combines process flow.
Tailored to fit system specifications.
They typically consist of a carbon steel or stainless steel outer body, lined internally with PTFE, FEP, or PFA for maximum chemical resistance.
Standard sizes range from 1” to 12”, and custom sizes can be manufactured to suit particular application needs.
Yes, they are capable of handling temperatures up to 230°C, depending on the pressure conditions and type of lining material used.
Yes, PTFE Lined Tees can be customized in terms of dimensions, branch sizes, and lining thickness to match specific system requirements.
PTFE Lined Tees are widely used in chemical, pharmaceutical, food processing, and wastewater industries for safe and corrosion-resistant flow control.
