PTFE Lined Pipe is a manufacturer of premium PTFE Lined Cross fittings ideal for harsh industrial conditions. With operations in Mumbai, India. We are a well-established manufacturer and supplier of FEP, PFA, and PTFE lined products. Our PTFE Lined Cross fittings are designed to manage aggressive chemicals and high temperatures with a long life and reliable performance. With superior chemical resistance, heavy-duty construction and a smooth interior surface. These fittings provides accurate flow distribution. And can be design to fit particular process requirements.

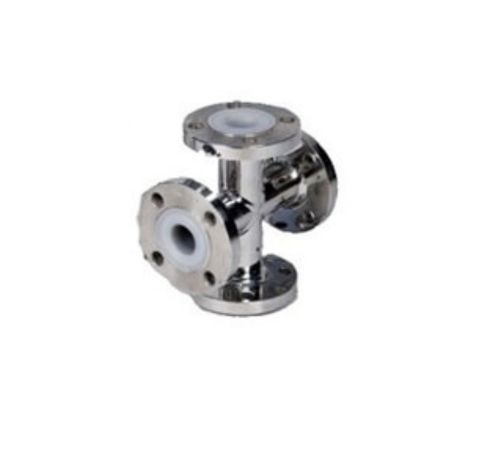

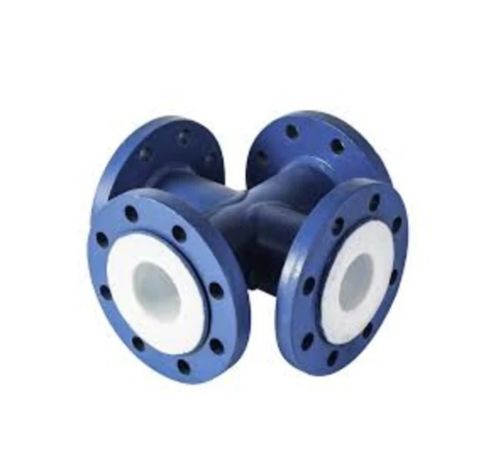

A PTFE Lined Cross is a four-way pipe fitting used to join pipelines at right angles, enabling fluid to flow in several directions. The PTFE lining offers excellent protection from corrosion, heat and chemical reaction. Such fittings are most suitable for harsh process conditions wherein purity, safety, and endurance matter. Usually found in use within chemical processing, pharmaceuticals, and petrochemical applications, PTFE Lined Cross fittings provide leak-free and seamless flow at points of pipe intersections, maintaining effective distribution and control throughout sophisticated piping networks.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
PTFE Lined Pipe is a leading supplier of PTFE Lined Cross in Mumbai, India, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| CLASS – 150 # | ||||||||||
| NB | L | FLG. | RF | PCD | App. | App. | LINER THK | N x M | WEIGHTS | |
|---|---|---|---|---|---|---|---|---|---|---|
| O / D | O / D | T1 | T1 | Vaccume (T) | Non Vacc (T) | (kg/piece) | ||||
| 1/2″ | —- | 89 | 35.1 | 60.5 | 14.2 | 24.2 | 3.0 | 3.0 | 4 x 1/2″ | 4 |
| 3/4″ | —- | 98 | 42.9 | 69.9 | 15.7 | 27.7 | 3.0 | 3.0 | 4 x 1/2″ | 3.5 |
| 1″ | 89 | 108 | 50.8 | 79.2 | 17.2 | 29.2 | 4.0 | 3.0 | 4 x 1/2″ | 5.5 |
| 1 1/4″ | 95 | 118 | 63.5 | 88.9 | 18.7 | 30.2 | 4.0 | 3.0 | 4 x 1/2″ | 7.7 |
| 1 1/2″ | 102 | 127 | 73.2 | 98.6 | 20.5 | 32.5 | 4.0 | 3.0 | 4 x 1/2″ | 8.7 |
| 2″ | 114 | 152 | 91.9 | 120.7 | 22.1 | 37.1 | 4.0 | 3.0 | 4 x 1/2″ | 14.0 |
| 2 1/2″ | 127 | 178 | 104.6 | 139.7 | 25.4 | 40.4 | 4.0 | 3.0 | 4 x 5/8″ | 20.6 |
| 3″ | 140 | 191 | 127.0 | 152.4 | 27.9 | 42.9 | 4.0 | 3.0 | 4 x 5/8″ | 24.8 |
| 4″ | 165 | 229 | 157.2 | 190.5 | 28.9 | 43.9 | 4.5 | 3.0 | 8 x 5/8″ | 39.1 |
| 5″ | 190 | 254 | 185.7 | 215.9 | 28.9 | 43.9 | 6.0 | 5.0 | 8 x 3/4″ | 68.8 |
| 6″ | 203 | 279 | 215.9 | 241.3 | 30.4 | 45.4 | 6.0 | 5.0 | 8 x 3/4″ | 79.5 |
| 8″ | 229 | 343 | 269.7 | 298.5 | 33.4 | 48.4 | 6.0 | 5.0 | 8 x 3/4″ | 99.0 |
| 10″ | 280 | 406 | 323.9 | 362.0 | 35.7 | 50.7 | 7.5 | 5.0 | 12 x 7/8″ | 160.0 |
| 12″ | 305 | 483 | 381.0 | 431.8 | 37.8 | 52.8 | 7.5 | 5.0 | 12 x 7/8″ | 280.0 |
Withstands harsh acids and solvents.
Prevents fluid leakage at joints.
Suitable for extreme process heat.
Tailored to fit system specifications.
To ensure a secure and safe installation, use the correct gaskets, follow the recommended torque settings, and make sure flanges are properly aligned. This helps avoid stress on the PTFE lining and prevents damage.
Yes, they are compatible with a wide variety of harsh chemicals, including strong acids, alkalis, solvents, and other corrosive media.
Unlike regular metal fittings, PTFE lined crosses offer excellent chemical resistance and protect against corrosion and contamination when handling aggressive or reactive fluids.
Standard sizes usually range from 25mm to 300mm NB. However, we can also provide custom sizes based on your specific requirements.
Yes, PTFE is highly resistant to heat and can typically withstand temperatures up to 260°C, making it ideal for high-temperature applications.
