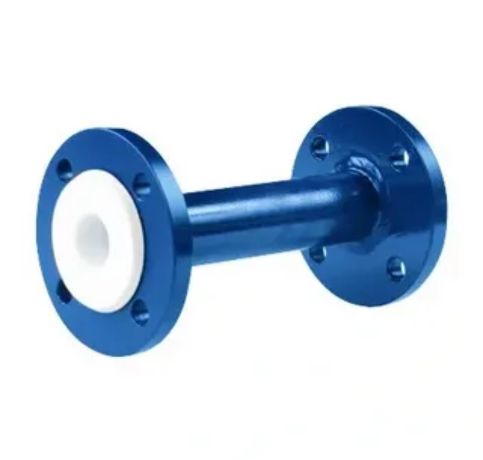

Leading the industry in Mumbai, India, we offer expertise in the production of quality PTFE, FEP, and PFA lined pipe spools and flanged pipe spools. Pipe spool is a pre-fabricated part of a piping system of pipes, flanges, and fittings assembled together into an installation-ready unit. It allows convenient on-site installation and reduces construction time. Lined spools, especially PTFE-lined, offer superior corrosion resistance, chemical inertness, and smooth flow, hence ideal for dealing with aggressive media. Advantages are reduced maintenance, extended service life, and compatibility with large quantities of chemicals. Custom manufacture allows precise adjustment to project requirements, ensuring quality and fit. The chemical processing, oil & gas, water treatment, and pharmaceutical industries are well served with PTFE lined pipe spools in India.
A PTFE-lined pipe spool is a piping segment with an interior lining of Polytetrafluoroethylene (PTFE), an extremely inert and non-reactive fluoropolymer. It has the mechanical strength of steel and chemical resistance of PTFE, so it is perfectly suited for conveying aggressive or poisonous chemicals. The PTFE lining makes it corrosion resistant for metals, resistant to fluid friction, and capable of withstanding high temperatures and severe media. These spools are pre-assembled for easy installation and find wide usage in such industries as chemicals, petrochemicals, pharmaceuticals, and water treatment where corrosion resistance and cleanliness are crucial. They enable system life extension and reduce maintenance needs.
Vivek PTFE Lined Pipe is a leading supplier of PTFE Lined Pipe spool in Mumbai, India, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Nominal Bore | Internal Dia. (d) | PTFE Liner Thickness (t) | FLANGE P. C. D | Flange Hole Dia. | Raised | Max.Length | Pipe Schedule | |
|---|---|---|---|---|---|---|---|---|
| mm | Inches | (± 1 mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 25 | 1 | 19.5 | 3.3 | 79.4 | 15.9 | 51 | 3000 | 40 |
| 40 | 1.5 | 33.8 | 3.3 | 98.4 | 15.9 | 73 | 3000 | 40 |
| 50 | 2 | 45.4 | 3.3 | 120.6 | 19.0 | 92 | 3000 | 40 |
| 80 | 3 | 70.8 | 3.3 | 152.4 | 19.0 | 127 | 3000 | 40 |
| 100 | 4 | 95.2 | 3.8 | 190.5 | 19.0 | 157 | 3000 | 40 |
| 150 | 6 | 145.1 | 4.5 | 241.3 | 22.2 | 216 | 3000 | 40 |
| 200 | 8 | 197.4 | 5.0 | 298.4 | 22.2 | 270 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 300 | 12 | 300.1 | 6.0 | 431.8 | 25.4 | 381 | 3000 | 30 |
PTFE lining protects the pipe spool from highly corrosive chemicals, acids, and solvents, extending the system’s lifespan.
Reduces friction, prevents buildup, and ensures consistent flow of media, even with sticky or aggressive substances.
Performs reliably under a broad range of temperatures and pressures without degrading or reacting.
Minimizes the need for frequent inspections, repairs, and replacements, lowering operating costs.
The linings are either extruded or molded onto the metal pipes, creating a strong, uniform bond that ensures reliable protection.
They offer exceptional chemical resistance and thermal stability, making them ideal for transporting highly aggressive fluids.
Yes, they are highly durable, offering long-lasting protection against corrosion and wear.
Yes, PFA linings can tolerate temperatures up to 260°C (500°F), while PTFE and FEP also provide excellent heat resistance.
They work with most chemicals but may not be compatible with alkali metals or highly reactive substances
