PTFE Lined Pipe one of the top manufacturers of Teflon Lined Pipe in India, we provide hard-wearing and high-quality solutions that adhere to rigorous industrial requirements. Teflon Lined Pipe includes applying a coating of PTFE within fittings, equipment and pipes in order to insulate them against extremely corrosive and aggressive chemicals. Due to its non-stick and inert nature, Teflon Lined Pipe prevents damage, prolongs life and results in safer processes even under extremely harsh industrial settings. Applications like chemical processing, pharmaceuticals, water treatment, petrochemicals, and oil & gas have great dependency on Teflon-lined systems for the transportation of acids, solvents, and other toxic substances. Teflon is used due to its good chemical resistance, broad tolerance to temperature, low friction and contaminant-free handling. It prevents corrosion, material degradation and contamination and provides consistent performance with less maintenance requirement. We offer Teflon lining on different base metals such as Mild Steel (MS), Stainless Steel (SS) and Carbon Steel (CS) all tailored to project specifications.

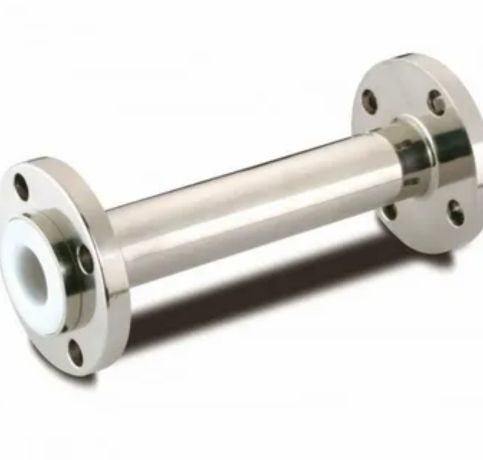

A Teflon lined pipe is a metal pipe internally coated with PTFE (Polytetrafluoroethylene), also popularly referred to as Teflon, in order to ensure high chemical resistance and corrosion resistance. The lining forms a non-reactive shield between the internal metal surface of the pipe and aggressive media like acids, solvents, or corrosive gases. Teflon lined pipes are widely applied in chemical processing, pharmaceuticals, oil & gas, and wastewater treatment plants where purity and durability are of utmost importance. The combination of Teflon’s non-stick, non-corrosive properties with the strength of base metals like MS, SS, or CS ensures safe, long-term fluid handling.
Vivek PTFE Lined Pipe is a leading supplier of Telfon Lined Pipes in Mumbai, India, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size (NB) | øA±1 | øB | øC | PCD | øE | G | No. of Holes | Holes Dia | Pipe THK. K | Liner THK. S | Face THK. H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 MM | 14 | 21 | 34.9 | 60.3 | 88.9 | 11.1 | 4 | 15.9 | 2.9 | 4 | 2.4 |
| 20 MM | 19.6 | 26.6 | 42.7 | 69.8 | 98.4 | 12.7 | 4 | 15.9 | 3.4 | 4 | 2.4 |
| 25 MM | 19.6 | 26.6 | 50.8 | 79.4 | 108 | 14.2 | 4 | 15.9 | 3.4 | 4 | 2.4 |
| 32 MM | 28.1 | 35.1 | 63.5 | 88.9 | 117.5 | 15.8 | 4 | 15.9 | 3.6 | 4 | 2.4 |
| 40 MM | 33.9 | 40.9 | 73 | 98.4 | 127 | 17.5 | 4 | 15.9 | 3.7 | 4 | 2.4 |
| 50 MM | 45.5 | 52.5 | 92.1 | 120.7 | 152.4 | 19.1 | 4 | 19 | 3.9 | 4 | 2.4 |
| 65 MM | 55.7 | 62.7 | 104.8 | 139.7 | 177.8 | 22.2 | 4 | 19 | 5.2 | 4 | 2.4 |
| 80 MM | 70.9 | 77.9 | 127 | 152.4 | 190.5 | 23.8 | 4 | 19 | 5.5 | 4 | 2.4 |
| 100 MM | 95.3 | 102.3 | 157.2 | 190.5 | 228.6 | 23.8 | 8 | 19 | 6 | 4 | 2.4 |
| 125 MM | 119.2 | 128.2 | 185.7 | 215.9 | 254 | 23.8 | 8 | 22.2 | 6.6 | 5 | 3.8 |
| 150 MM | 145.1 | 154.1 | 215.9 | 241.3 | 279.4 | 25.4 | 8 | 22.2 | 7.1 | 5 | 3.8 |
| 200 MM* | 197.4 | 206.4 | 269.9 | 298.5 | 342.9 | 28.6 | 8 | 22.2 | 6.35 | 5 | 3.8 |
| 250 MM* | 249.3 | 260.3 | 323.9 | 362 | 406.4 | 30.2 | 12 | 25.4 | 6.35 | 6 | 4 |
| 300 MM* | 300.1 | 311.1 | 381 | 431.8 | 482.6 | 31.8 | 12 | 25.4 | 6.35 | 6 | 4 |
| 350 MM* | 328.7 | 339.7 | 412.8 | 476.3 | 533.4 | 34.9 | 12 | 28.6 | 7.92 | 6 | 4 |
| 400 MM* | 379.5 | 390.5 | 469.9 | 539.8 | 596.9 | 36.5 | 16 | 28.6 | 7.92 | 6 | 4 |
| 450 MM* | 429.3 | 441.3 | 533.4 | 577.9 | 635 | 39.7 | 16 | 31.8 | 7.92 | 6.5 | 4.4 |
| 500 MM* | 475.9 | 488.9 | 584.2 | 635 | 698.5 | 42.9 | 20 | 32 | 9.52 | 7 | 4.8 |
| 600 MM* | 575.9 | 590.5 | 692.2 | 749.3 | 812.6 | 47.6 | 20 | 35 | 9.52 | 8 | 5.6 |
| 700 MM | 685.1 | 692.1 | 801.6 | 863.6 | 827.1 | 50 | 28 | 35 | 9.52 | 4 | 2.4 |
| 800 MM | 786.7 | 793.7 | 916.2 | 977.9 | 1060.4 | 50 | 28 | 41.3 | 9.52 | 4 | 2.4 |
Teflon (PTFE) resists a wide range of corrosive chemicals, acids, and solvents, making it ideal for harsh industrial environments.
The smooth, non-stick inner surface reduces flow resistance, prevents buildup, and improves fluid efficiency.
Teflon performs reliably across a wide temperature range (typically -20°C to +200°C), maintaining integrity under thermal stress.
PTFE lining is non-reactive and inert, ensuring purity of media—critical for pharmaceuticals, food, and high-purity chemical applications.
Teflon lined pipes can typically operate between -20°C and +200°C, depending on the fluid type, pressure, and application requirements.
Mild Steel (MS), Stainless Steel (SS), and Carbon Steel (CS) are the most commonly used base materials for Teflon lining based on application needs.
Teflon lining offers superior chemical resistance, non-stick properties, low friction, and high thermal stability, making it ideal for safely transporting harsh or high-purity substances.
Teflon lined pipes are commonly used in chemical processing, pharmaceuticals, oil & gas, food and beverage, and wastewater treatment industries for handling corrosive or sensitive fluids.
A Teflon lined pipe is a metal pipe coated internally with PTFE, providing excellent resistance to corrosion, chemicals, and heat, making it ideal for transporting aggressive or reactive fluids safely.
We are the leading Manufacturer and Supplier of Vivek PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Mumbai, India.
