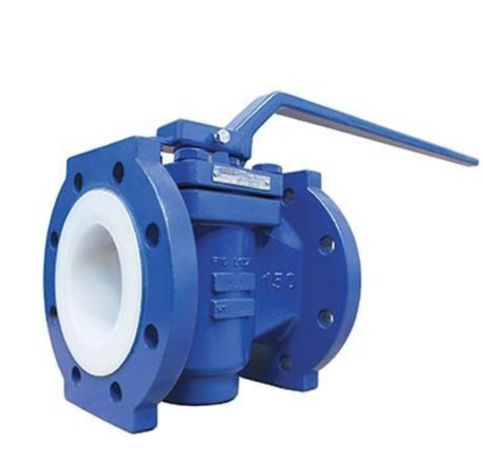

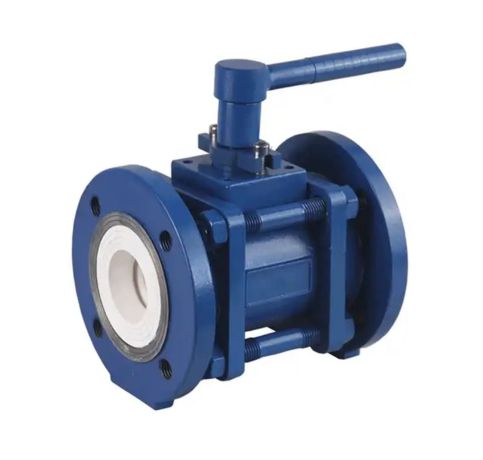

PTFE Lined Pipe is a prominent manufacturer of PTFE, FEP, and PFA Lined Plug Valves in Mumbai, India. As a manufacturer and distributor of PFA Lined Plug Valves, they provide quality solutions to industries such as aviation fuelling, refining, oil and gas production, and pipeline systems. Their MS PFA Lined Plug Valves are specifically designed to meet the tough standards of these sectors. Additionally, the SS 316 FEP Lined Plug Valves come equipped with adjustable bolts, static eliminators and a locked-in lining, all contributing to enhanced performance and longer-lasting reliability.
A PTFE lined plug valve is a valve with a metal body lined with PTFE to withstand corrosion and create a tight seal. It consists of a tapered plug rotating in the PTFE sleeve to direct the flow of fluids. The valves are suitable for working with harsh, corrosive and high-temperature fluids. They have a reputation for being excellent chemically resistant, low friction and long-wearing durable products, which can be used for a variety of industrial applications.
Size : 25 NB TO 80 NB.
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Body Test : 15 kg/cm2.
Hydro Seat Test : 10 Kg/cm2.
Leak Test : as per API 598.
Temperature : FEP –Max 180 Degree Celsius PFA Max: 200 Degree Celsius.
PTFE Lined Pipe is a leading supplier of PTFE Lined Plug Valve in Mumbai, India, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
SIZE |
L |
G |
H |
|
15 |
108 |
158 |
95 |
|
20 |
117 |
228 |
100 |
|
25 |
127 |
228 |
105 |
|
40 |
165 |
325 |
130 |
|
50 |
178 |
325 |
140 |
|
80 |
203 |
548 |
170 |
|
100 |
228 |
548 |
217 |
|
150 |
268 |
575 |
300 |
The PTFE lining protects against harsh chemicals, making the valve ideal for corrosive applications.
PTFE-lined plug valves offer a tight, leak-free seal, making them ideal for applications where leak prevention is crucial.
These valves can withstand high temperatures without degrading, ensuring reliable performance in thermal processes.
Thanks to their durability, PTFE-lined plug valves minimize downtime and reduce maintenance costs, making them a cost-effective choice for industrial applications.
To maintain PTFE Lined Plug Valves, regular inspections and cleaning are crucial for ensuring they perform at their best. The PTFE lining should be inspected for any signs of wear, and the moving parts should be lubricated to avoid sticking or seizing.
PTFE Lined Plug Valves come in a variety of sizes, ranging from 1/2 inch to several inches, to suit different flow rates and industrial applications.
Yes, PTFE Lined Plug Valves are built to handle high temperatures, typically up to around 200°C (392°F), depending on the specific type of PTFE material used. This makes them reliable for use in high-temperature environments.
PTFE Lined Plug Valves control fluid flow by rotating a conical plug inside a port. The PTFE lining ensures smooth operation and provides resistance to wear, allowing the valve to function effectively over time.
PTFE Lined Plug Valves are usually made with a carbon steel or stainless steel body, combined with a PTFE liner. This combination provides excellent corrosion resistance, strength, and durability, making them ideal for harsh chemical environments.
