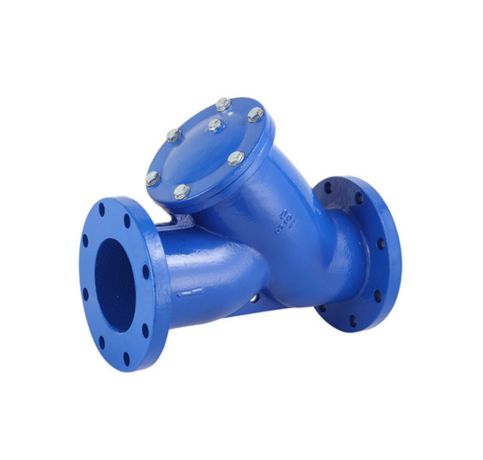

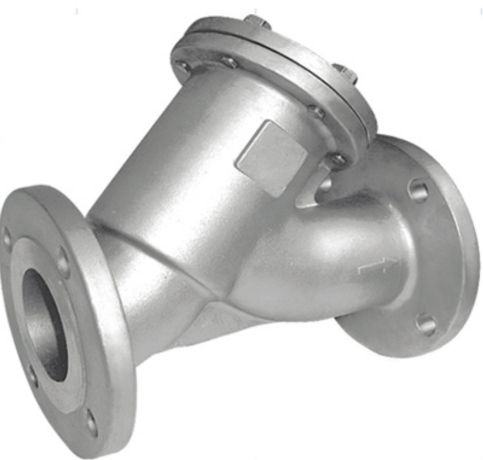

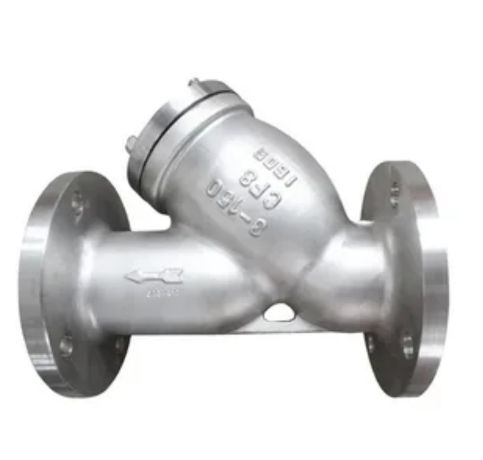

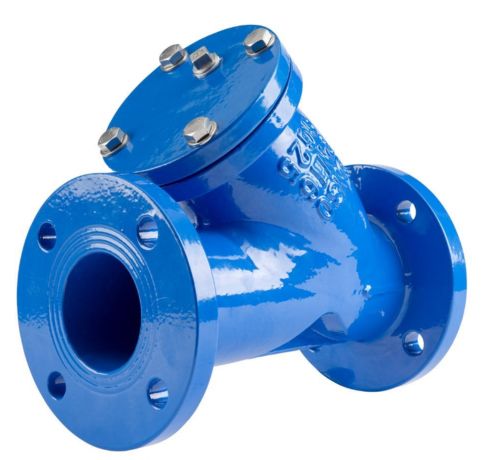

PTFE Lined Pipe, a reliable manufacturer based in Mumbai, India is a provider of premium-quality FEP/PFA Lined “Y” Type Strainers that are in compliance with national and international standards. Y-type strainers derive their name from their Y-shape appearance. And are applied for the removal of large solid particles in the initial stages of fluid or gas flow, thus ensuring the cleanliness and efficiency of pipelines.

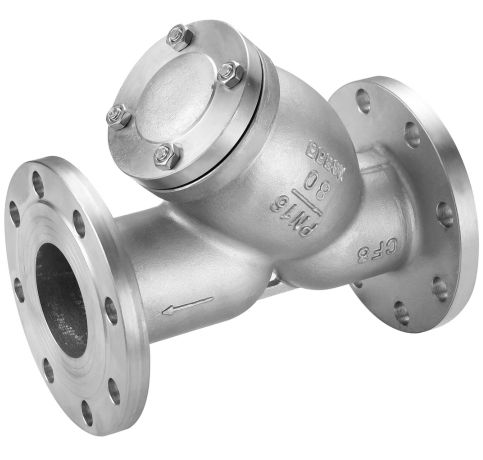

A PTFE Lined Y Type Strainer is a chemical-resistant filter installed in a pipeline to filter out solid impurities from gases or liquids. Its Y-shaped structure contains a mesh filter and is internally lined with PTFE (Polytetrafluoroethylene), a material that has high chemical and heat resistance. The strainers shield delicate equipment such as pumps and valves from damage, enhancing flow efficiency and prolonging equipment life. They are widely employed in petrochemical, pharmaceutical, and chemical industries for safe and reliable operation.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Vivek PTFE Lined Pipe is a leading supplier of PTFE Lined Y Type Strainer in Mumbai, India, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size(mm) | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| Size(inch) | 1″ | 1½” | 2″ | 2½” | 3″ | 4″ | 6″ | 8″ |
| L | 190 | 260 | 284 | 305 | 348 | 415 | 508 | 650 |
| Ød | 25 | 38 | 50 | 65 | 75 | 100 | 150 | 200 |
| O.D. ØD | 110 | 125 | 150 | 180 | 190 | 230 | 280 | 345 |
| P.C.D. ØK | 79.2 | 98.5 | 120.6 | 139.7 | 152.4 | 190.5 | 241.3 | 298.4 |
| R.F.DIA. ØRF | 50.8 | 73.0 | 92.1 | 104.7 | 127.0 | 157.2 | 215.9 | 269.9 |
| No. OF HOLE N | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 |
| HOLE DIA. ØH | 15.8 | 15.8 | 19 | 19 | 19 | 19 | 22.2 | 22.2 |
Effectively removes debris and particulates, protecting downstream equipment and improving system longevity.
Operates efficiently under high-temperature conditions without compromising material integrity or filtration performance.
PTFE lining adds durability, ensuring the strainer withstands harsh operational conditions for extended periods.
Requires less upkeep due to durable PTFE lining.
Install it with the screen pointing downward for optimal debris collection, and ensure the flow direction matches the arrow marked on the body.
The body is usually made from ductile iron, carbon steel, or stainless steel, with an internal PTFE lining for chemical resistance and durability.
These strainers are widely used in chemical, pharmaceutical, and food processing industries, especially where aggressive or corrosive fluids need filtration without damaging the system.
Cleaning intervals depend on the contamination level of the fluid, but regular inspections and maintenance are recommended to maintain efficient flow and protect downstream equipment.
No, the PTFE lining is permanently bonded during the manufacturing process. If the lining is damaged, the entire strainer typically needs to be replaced.
